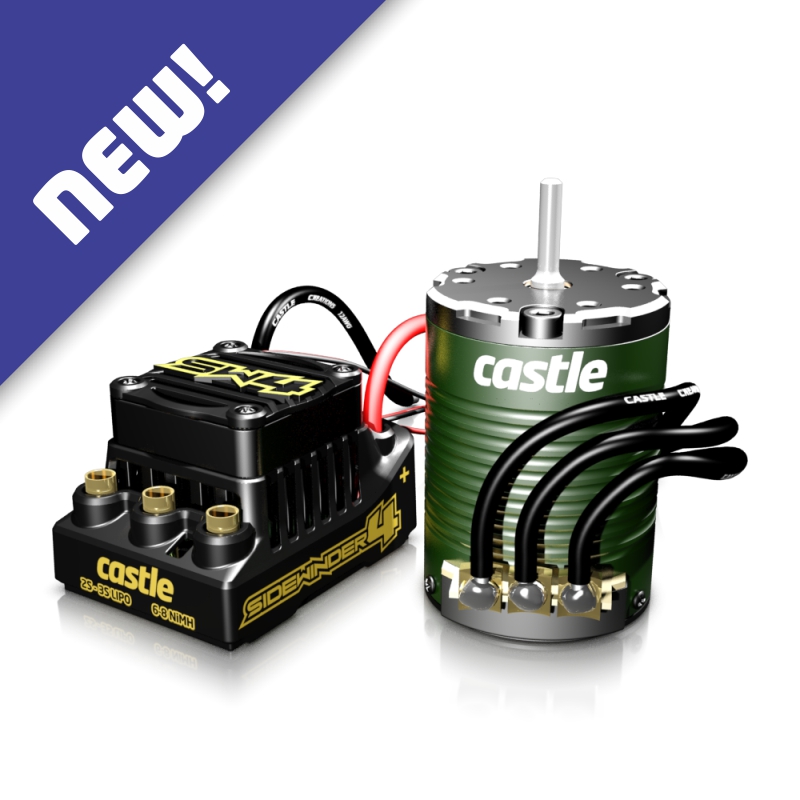

De geheel nieuwe SIDEWINDER 4™ bouwt voort op het populairste platform van Castle, de SIDEWINDER 1:10 SCALE SERIE, en is de eerste in zijn soort die de nieuwste CRYO-DRIVE™ -technologie van Castle uitrunt. CRYO-DRIVE™ combineert technologie met geavanceerde hardware- en softwarevooruitgangen om de thermische prestaties te verbeteren. COOLER TEMPS betekenen LANGER RIJDEN en MEER VERMOGEN in uw SIDEWINDER 4-opstelling.
Extra functies:
2s - 3s LiPo; 6 - 8 cellen NiMH-gebruik in voertuigen van 6,5 lbs met accu, klaar voor gebruik.
Sensorless borstelloze en / of geborstelde motorwerking.
Waterdicht ontwerp ESC en spatwaterdichte 30MM-fan *
5.0 volt vast, 2 ampère Piek BEC
Hoorbare waarschuwingen voor foutcondities
Verbeterde remfunctie voor slepen
Soepeler startups zonder sensor
Handige zenderprogrammering voor zes gemeenschappelijke instelbare instellingen
Extra instellingen en software-updates beschikbaar via Windows®-gebaseerde Castle Link-software en USB-adapter (afzonderlijk verkrijgbaar) of via Field Link-kaart (apart verkrijgbaar)
Telemetry Link compatibel voor Futaba® S.BUS2 (apart verkrijgbaar)
- Waterproof : Yes
- Telemetry Capable : Yes
- Data Logging : No
- Auxiliary Wire : No
- Minimum Input Voltage : 2S
- Maximum Input Voltage : 3S
- Sensored Capable : No
- Recon G6 Certified ESC : No
- ROAR Certified ESC : No
| Technical Specs |
| Input Voltage Range: |
2s - 3s LiPo; 6 - 8 cell NiMH |
| BEC Specifications: |
5.0 volts fixed, 2 amps. |
| Operating Environment: |
Waterproof* design allows for use in nearly any environment |
| Brake: |
Proportional |
| Reversible: |
Yes, but may be disabled for racing. |
| On/Off Switch: |
Yes |
| Cooling Fan: |
30mm fan included |
| ESC Size: |
L: 2.08" (52.92mm)
W: 1.50" (38.05mm)
H: 1.28" (32.56mm) |
| ESC Weight (w/wires): |
2.26 oz. (64 g) |
| Connectors: |
4mm female bullets for motor connection. |
| Items Needed for Operation: |
Battery Connector required; Castle 4mm polarized connectors, Dean's Ultra Plug, or Traxxas Power Connector recommended. |
| Product Use Statements: |
*Although Sidewinder 4 is waterproof, it is not intended for operation while completely submerged in liquid. They can corrode when exposed to corrosive materials, such as salt water. Always rinse the ESC with clean water after exposure to corrosives or dirt. While the controller may be waterproof, we suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind. |
| Application Guidelines: |
For 2WD short course trucks on 2s LiPo and geared conservatively.
1/10th 2WD Stadium trucks and buggies on 2s for bashing and limited runs on 3s with conservative gearing.
Great for 1/10th scale on-road cars for 2s and 3s use.
NOT for use in 4WD short course trucks.
Please refer to our Gearing Chart for recommended motor, battery and gearing for some of the more popular vehicles on the market. |
| Recommended Motors: |
Combo includes 1406-7700kv brushless motor. |
| Max. Recommended Vehicle Weight: |
No more than 5lbs with battery, ready-to-run. |
| Programmability: |
Fully programmable Castle feature set using Castle Link USB adapter (sold separately) and freely downloadable Castle Link Windows software. |
| Telemetry Link Capable: |
No |
| Tech Notes: |
Not all LiPos are created equal, and surge ratings should never be used to determine a pack’s suitability for a brushless application. Use the CONTINUOUS C rating only. Brushless setups frequently hit 100+ amps in peaks. We strongly suggest using 5,000 mAh or larger LiPo cells with a discharge rating of at least 30C (or high quality 25C batteries such as Traxxas® Power Cells®). Our experience suggests using only mild gear ratios with NiMH cells. Do not attempt to use NiMH cells in extreme setups. |
| Motor Technical Specs |
| Input Voltage Range: |
2S LiPo |
| Kv: |
7700 |
| Max. RPM: |
100,000 |
| Size: |
Length: 49.5mm
Diameter: 36mm |
| Weight (w/wires): |
193g/ 6.8oz |
| Shaft Size: |
Length: 15mm
Diameter: 1/8" (3.17mm) |
| Mounting Hole Specifications: |
M3 @ 25mm |
| Cooling Fan: |
Optional- Coming Soon! |
| Connectors: |
4mm male Castle Bullet Connectors |
| Application Guidelines: |
1/10th scale on-road cars for 2s use.
Lighter off-road 1/10th stadium trucks and buggies with conservative gearing.
NOT for use in 2WD or 4WD short course trucks.
Please refer to our Gearing Chart for recommended motor, battery and gearing for some of the more popular vehicles on the market. |
| Max. Recommended Vehicle Weight: |
5lbs |
| Tech Notes: |
Monitor motor temperatures closely; overheating a motor will cause permanent damage to the magnets. Never exceed 180° F on the the motor or ESC.
Water Resistant Design: Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
|
| Comparable Turn Count: |
Click here for 1406 Sensored Motor 2-Pole Turn-Count Equivalent Data Sheet |
